 Application Notes: Flat Power Transmission Belting

Applications:

  • Pumps
  • Compressors
  • Presses
  • Paper Mill Drives
  • Wood Chippers
  • Gang Saws
  • Textile machines
  •
  • Vertical Boring Mills
  • Double Trimming Cutters
  • Turbine / Generator Drives
  • Exhausters
  • Stone Crushers
  • Flour Mill Drives
  • NBR Rubber Belts Features:

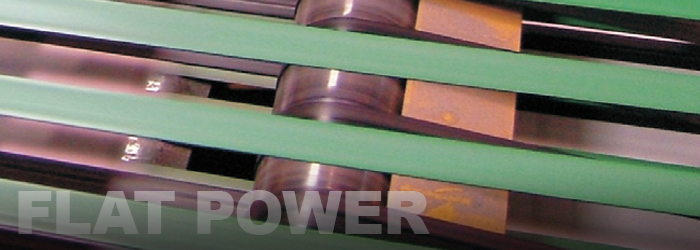

    Flat Power Transmission Belts are made with a special formulated NBR friction cover, making them suitable for dusty and wet conditions.
    NT-types
    NN-types
    GP-types
    SX/PP-types
    for one-sided power transmission
    for two-sided power transmission
    for one-sided power transmission
    for two-sided power transmission
    Leather Belting Features:
    Leather Flat Power Transmission Belts are made with very high density chrome leather covers, making them well suited for wet and oily conditions.
    LT-types
    LL-types
    for one-sided power transmission
    for two-sided power transmission
    All belts include a high strength nylon tension member for maximum power transmission, drive efficiency and service life.
    Belts can be ordered endless to your size specifications, or can be purchased in cut pieces or roll form

    Cat NoOverall Thickness (inches)Tensile Force 1% elongation lbs/inAdmissible Tensile force lbs/inMin. Pulley Diameter (inches)Max Width (inches)Temp Min (F)Temp Max (F)
    10 NT0.0625.7651.231.5-4176Quote
    15 NT0.0742.8107231.5-4176Quote
    20 NT0.0857.1143331.5-4176Quote
    25 NT0.1197.12424.731.5-4176Quote
    30 NT0.131313276.331.5-4176Quote
    40 NT0.161884709.831.5-4176Quote
    50 NT0.1926365613.831.5-4176Quote
    60 NT0.2735488419.731.5-4176Quote
    10 NN0.0725.7651.231.5-4176Quote
    15 NN0.0842.8107231.5-4176Quote
    20 NN0.0957.1143331.5-4176Quote
    25 NN0.1497.12424.731.5-4176Quote
    30 NN0.151313276.331.5-4176Quote
    40 NN0.181884709.831.5-4176Quote
    15NN/TA0.0738.3961.631.5-4176Quote
    123
