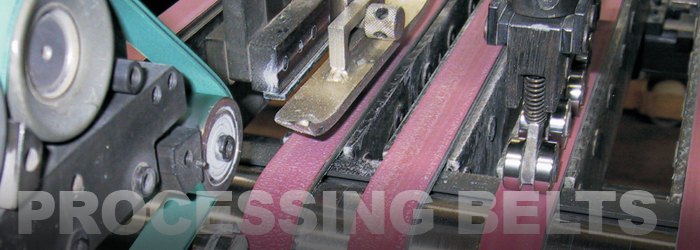

 Application Notes: Processing Belt

Applications:

  • Folder Gluers
  • Feeder Belts
  • Tube Winders
  • Paper Converting
  • Embossing and Die Cutting Machines
  • Stamping Belts
  • Card Board Machines
  • Live roller conveyors, etc.
Product Features:
  • Superior splicing technology allows belts to perform very reliable and trouble free
  • Different surface structures result in maximum performance under normal and adverse running conditions
  • Abrasion resistant elastomers lead to long belt life
  • High friction rubber covers provide aggressive grabbing power for highly accurate product positioning and processing, or quick acceleration if necessary
  • Special rubber formulas provide oil and chemical resistance
  • High strength nylon tension members make belts operate extremely efficient and dimensionally stable under varying loads, reducing operating and maintenance cost
Belts can be ordered endless to your size specifications, or can be purchased in cut pieces or roll form
Cat NoOverall Thickness (inches)Tensile Force 1% elongation lbs/inAdmissible Tensile force lbs/inMin. Pulley Diameter (inches)Max Width (inches)Temp Min (F)Temp Max (F)
TAS200.0813.133131.5-4176Quote
TAS300.1225.764231.5-4176Quote
TAS400.1633.1832.431.5-4176Quote
TAS600.24401005.931.5-4176Quote
TAG600.242537643.131.5-4176Quote
25TO0.07952373.831.5-4176Quote
10NO/UF0.092050131.5-4176Quote
10 NO0.092050131.5-4176Quote
20 NO0.1156140231.5-4176Quote
10-3N30.1222.8571.231.5-4176Quote
10-3N40.1625.7641.231.5-4176Quote
10-3N50.227671.631.5-4176Quote
5N60.2337.1933.131.5-4176Quote
20-8N20.0957.11431.631.5-4176Quote
20-8N30.1257.11431.631.5-4176Quote
12
